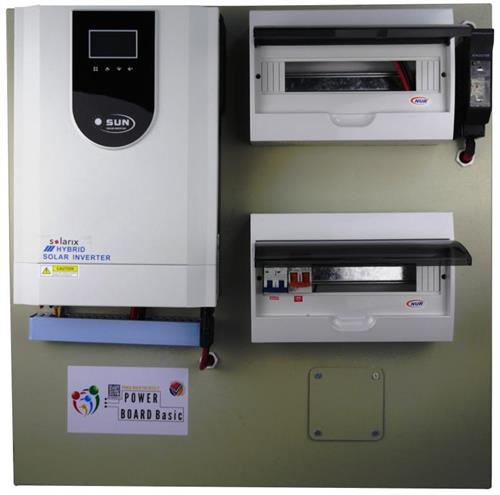

Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter Solution

Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter And Semi Plug And Play Power Board Solution.

Features and specifications

• Single Phase High Voltage 120A MPPT Solar Charge Controller.
• 6200w Rated Output Power.
• Nominal PV DC Voltage 360VDC.
• Maximum PV DC Voltage 500VDC.
• Input Voltage 230VAC.
• Maximum Input Current 40A.
• Maximum Charge Current 100A.
• Maximum Battery Current 125A.
• AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready.
• A/C Input Circuit Breaker for AC Protection.
• DB Board is Pre Wired to Inverter (AC and DC Sides).
• Wall Bracket Included.

Product code: SOLPBSUN65KVA
